We are Services Provider for Gateway, Converters, Intelligent Communication Gateways and our setup is situated in Vadgaon (BK), Pune, Maharashtra, India.
INTELLIGENT COMMUNICATION GATEWAYS
Within the broad Industrial IoT field, governments, equipment manufacturers, factory owners, and smart city investors are seeking solutions that can help them utilize powerful data analytics to raise service levels and reduce operational costs. This means that the demand for an easy and reliable way to extract data from field applications is increasing. Advantech’s Industrial Communication Gateways are designed to simplify data acquisition and transmission. These solutions improve service quality by facilitating infrastructure connectivity, equipment monitoring, and energy consumption analysis. This allows manufacturers and organizations to obtain insights on usage behaviors and derive intelligence through the analysis of big data.
Gateway, Converters
FEATURE HIGHLIGHTS :
- Designed with industrial grade IC with long MTBF.
- IEC standard fulfills all mission critical applications.

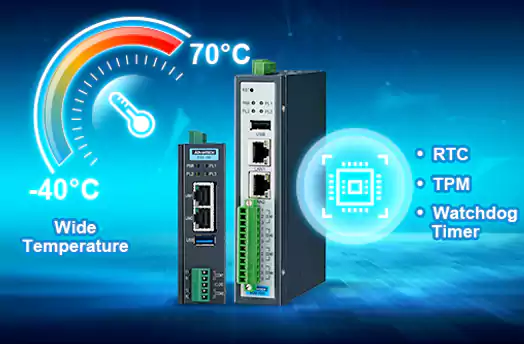

- Wide operating temperature range (-40~70°C).
- Battery powered RTC, independent WDT, and TPM support.
- Linux environment offers open and standard platform.

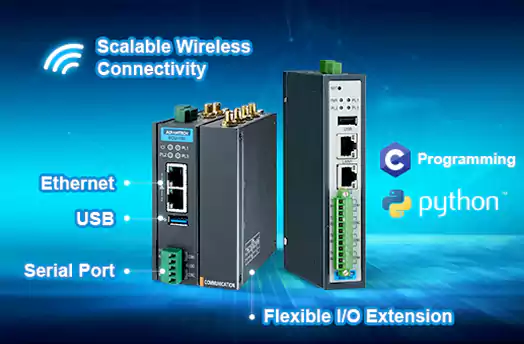

- Develop your own applications with C, Python, or 3rd party libraries.
- Multiple communication interface.

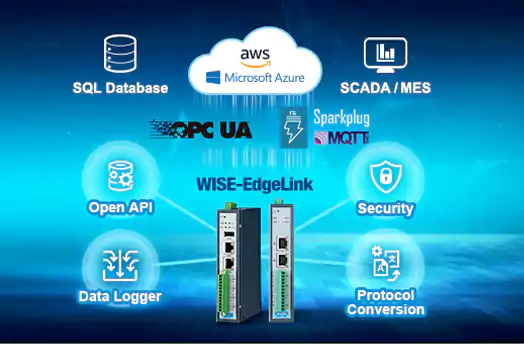

- EdgeLink bundle with protocol support for data from field devices.

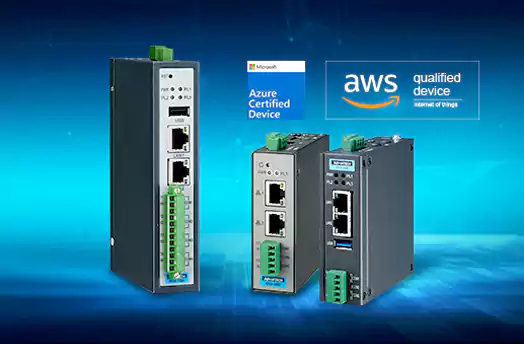

- No coding support for Azure/AWS/Cumulocity/Sparkplug MQTT.
- OPCUA/ODBC/JDBC IT software and SQL database for data support.
- Built-in EdgeLink allows users to set up cloud solutions and manage the entire lifecycle of equipment, monitor factory energy consumption and analyze renewable energy efficiency through AWS or Azure services.

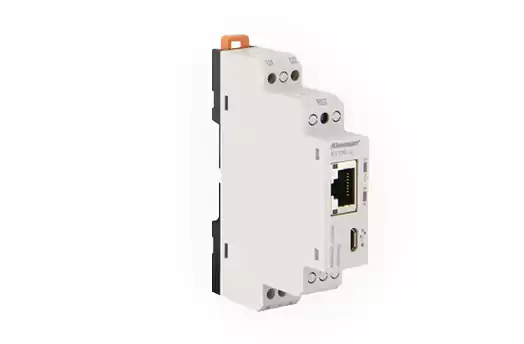

Ethernet Gateway (TCP/IP - RS485)
| General | |||
| Casing Width (mm) | 17,5 | ||
| Connections | Screw Terminal (for supply and serial interface) | ||
| Working Mode | Server or Client Selectable (bidirectional) | ||
| Configuration | Mini USB Port or Web Interface | ||
| DHCP (Automatic IP Receive) | ✔ | ||
| ARP | ✔ | ||
| Ping Blocking | ✔ | ||
| LED Indicators | ✔ | ||
| Reset Function | ✔ | ||
| ESD Protection | ✔ | ||
| Driver Supported | Microsoft .NET Framework 3.5 üzeri windows işletimsistemleri | ||
| Ethernet Interface | Number of Ports | 1 | |
| Operation Modes | Modbus TCP, Modbus RTU over TCP, Modbus ASCII over TCP | ||
| Ethernet Interface | Number of Remote Connections | Server Mode | 6 |
| Client Mode | 1 | ||
| Ethernet Interface | Connector | RJ45 | |
| Data Transmission Rate | 10/100 Base-TX | ||
| Serial Interface | Number of Ports | 1 | |
| Operation Modes | Modbus RTU, Modbus ASCII | ||
| Serial Standart | RS485 | ||
| Serial Interface | Number of Serial Devices | Server Mode | 64 |
| Client Mode | 1 | ||
| Serial Communication Parameters | Baud Rate | 300 to 115200 bps | |
| Data Bit | 8 | ||
| Stop Bits | 1 or 2 | ||
| Parity | None, Even, Odd | ||
| Supply | Voltage | AC | 18-50V |
| DC | 18-50V | ||
| Consumption | AC | <2.2VA | |
| DC | <1.2W | ||
| Supply | Frequency | 45-65Hz | |
| Galvanic Isolation | Supply - Ethernet Port | 1500VRMS, 2250VDC | |
| Supply - Serial Port | 1500VRMS, 2250VDC | ||
| Serial Port - Ethernet Port | 2500VRMS | ||
| Mechanical Properties | Weight (g) | 58 | |
| Packing Unit | 1 | ||
| Protection Class | IP20 | ||
| Assembly Type | Rail Mount | ||
| Ambient Conditions | Operating Temperature | -10°C +60°C | |
| Storing Temperature | -30°C +80°C | ||
| Relative Humidity (No Condensation) | Maks. 95% | ||
| EMC-EMI | TS EN 55022, TS EN 55024 | ||
| General | Schematics | ||
